Current electricity questions with solutions

Showing 1–10 of 261 questions

• NumericmediumCurrent electricityElectrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer

  A galvanometer gives full-scale deflection at 0.006 A. With a 4990 Ω series resistance it becomes $a_0–30$ V voltmeter. If a resistance (2n/249) Ω is connected as a shunt, it becomes $a_0–1.5$ A ammeter. Find n.

  Your answer

  Check answerShow answer

  JEE Advanced 2014

  Open question & full solution →
• MCQeasyCurrent electricityElectric Current, Drift Velocity & Resistance

  The resistances of the platinum wire of a platinum resistance thermometer at the ice point and steam point are 8 Ω and 10 Ω respectively. After inserting in a hot bath of temperature 400°C, the resistance of platinum wire is:

  Options

  • Option A

    2 Ω

  • Option B

    16 Ω

  • Option C

    8 Ω

  • Option D

    10 Ω

  Check answerShow answer

  JEE Mains 2024 04 Apr Morning Shift

  Open question & full solution →
• NumericeasyCurrent electricityElectrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer

  In an experiment to find emf of a cell using a potentiometer, the null-point length for a cell of emf 1.5 V is 60 cm. If this cell is replaced by another cell of emf E, the null-point length increases by 40 cm. If E = x/10 V, the value of x is ______.

  Your answer

  Check answerShow answer

  JEE Mains1 February 2023Shift 1Morning Shift

  Open question & full solution →
• Multi-correctdifficultCurrent electricityElectrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer

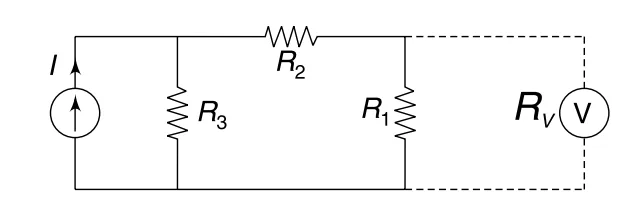

  Three resistors R₁ = 3 kΩ, R₂ = 2 kΩ and R₃ = 5 kΩ have been connected to a constant current source as shown in the figure. The current source supplies current I = 2 mA to the circuit. A voltmeter with Rᵥ = 6 kΩ internal resistance is connected, as shown, to measure the potential difference across R₁.






  Select all that apply

  • Option A

    Percentage error = 25.9%

  • Option B

    Percentage error = 20.6%

  • Option C

    After interchanging R₂ and R₃, percentage error increases

  • Option D

    After interchanging R₂ and R₃, percentage error decreases

  Check answerShow answer

  Current Electricity Objective Conversion

  Open question & full solution →
• MCQmediumCurrent electricityCells, Maximum Power & Heating Effect

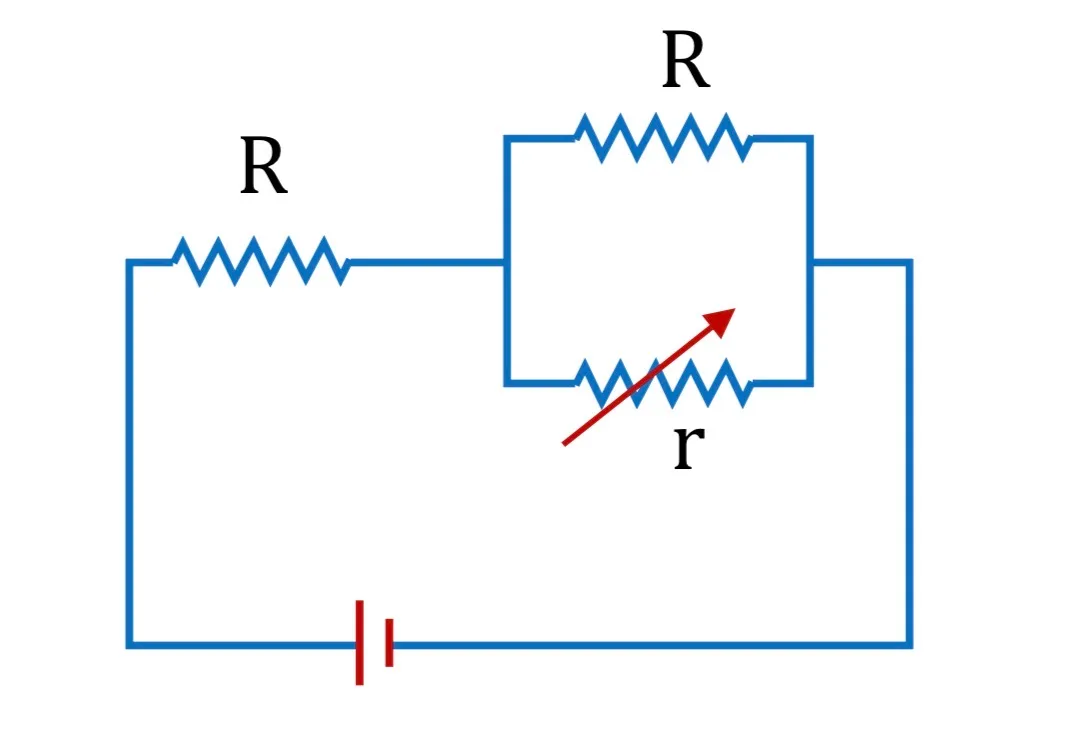

  In the circuit shown, the resistance r is a variable resistance. If for r = f R, the heat generation in r is maximum then the value of f is :



  Options

  • Option A

    1

  • Option B

    1/4

  • Option C

    1/2

  • Option D

    $\frac{3}{4}$

  Check answerShow answer

  JEE Mains 2016

  Open question & full solution →
• MCQeasyCurrent electricityCells, Maximum Power & Heating Effect

  When a potential difference V is applied across a wire of resistance R, it dissipates energy at a rate W. If the wire is cut into two halves and these halves are connected mutually parallel across the same supply, the same supply, the energy dissipation rate will become:

  Options

  • Option A

    1/4W

  • Option B

    1/2W

  • Option C

    2W

  • Option D

    4W

  Check answerShow answer

  JEE Mains 2024 30 Jan Evening Shift

  Open question & full solution →
• NumericmediumCurrent electricityElectrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer

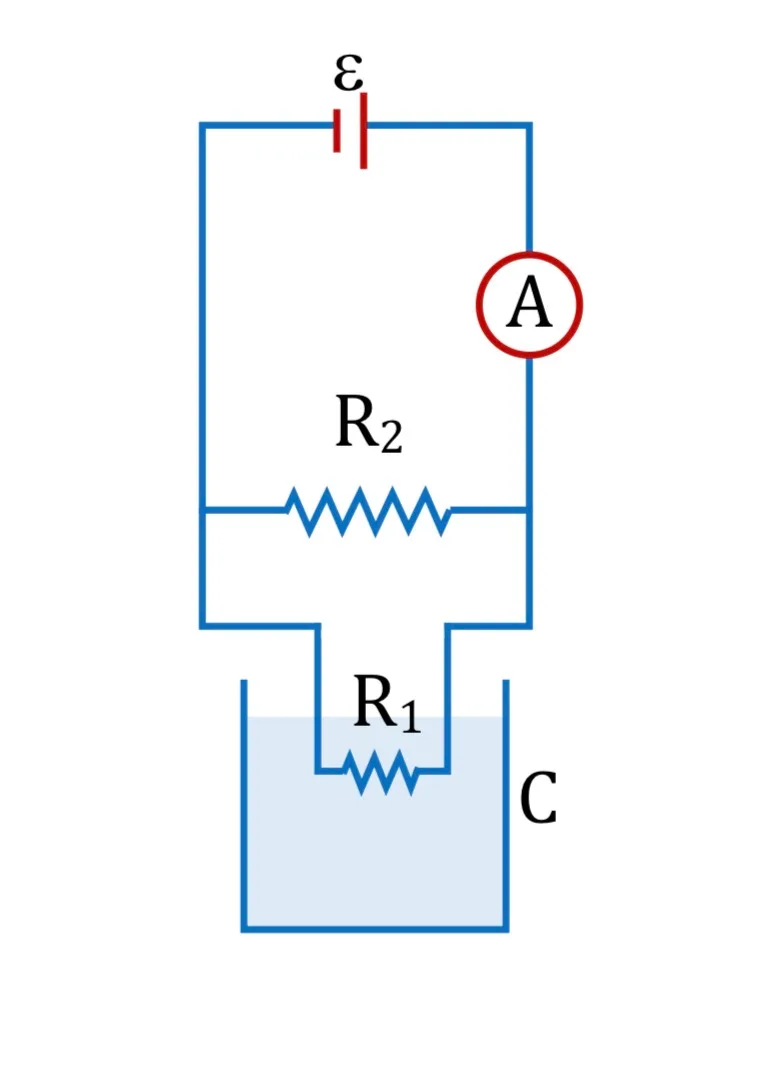

  The coil of a calorimeter C has a resistance of R₁ = 60Ω. The coil R₁ is connected to the circuit as shown in figure. What is the rise in temperature (°C) of 240 grams of water poured into the calorimeter when it is heated for 7 minutes during which a current flow through the coil and the ammeter shows 3A? The resistance R₂ = 30Ω. [Disregard the resistances of the battery and the ammeter, and the heat losses and heat capacity of the calorimeter and the resistor and specific heat of water = 4200 J/kg°C]



  Your answer

  Check answerShow answer

  JEE Advanced

  Open question & full solution →
• Multi-correctmediumCurrent electricityElectrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer

  Consider two identical galvanometers and two identical resistors with resistance R. If the internal resistance of the galvanometers RC < R/2, which of the following statement(s) about any one of the galvanometers is(are) true?

  Select all that apply

  • Option A

    The maximum voltage range is obtained when all the components are connected in series.

  • Option B

    The maximum voltage range is obtained when the two resistors and one galvanometer are connected in series, and the second galvanometer is connected in parallel to the first galvanometer.

  • Option C

    The maximum current range is obtained when all the components are connected in parallel.

  • Option D

    The maximum current range is obtained when the two galvanometers are connected in series and the combination is connected in parallel with both the resistors.

  Check answerShow answer

  JEE Advanced 2016

  Open question & full solution →
• MCQmediumCurrent electricityCells, Maximum Power & Heating Effect

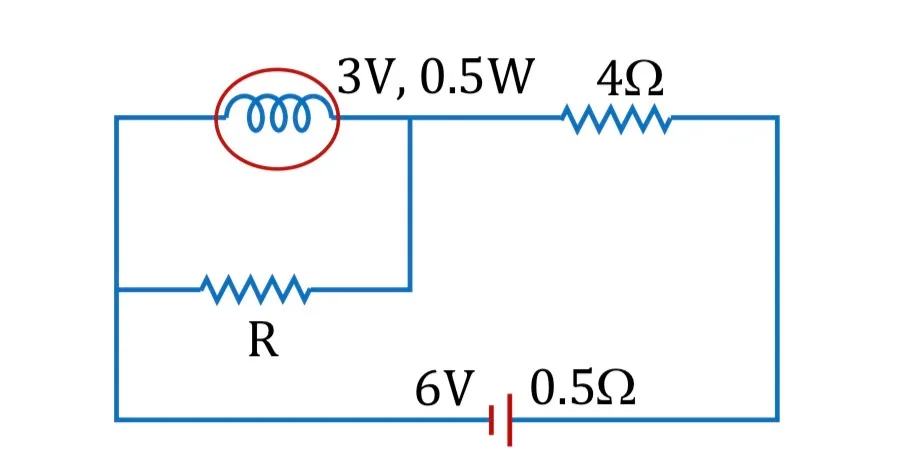

  The value of the resistance R in the circuit shown below so that electric bulb consumes the rated power is :-



  Options

  • Option A

    4 ohm

  • Option B

    6 ohm

  • Option C

    8 ohm

  • Option D

    10 ohm

  Check answerShow answer

  JEE Advanced

  Open question & full solution →
• IntegereasyCurrent electricityCells, Maximum Power & Heating Effect

  A potential V₀ is applied across a uniform wire of resistance R, giving power P₁. The wire is cut into two equal halves and V₀ is applied across each half separately. If P₂:P₁ = √x:1, find x.

  Your answer

  Check answerShow answer

  JEE Mains13 April 2023Shift 1Morning Shift

  Open question & full solution →
