Mutual induction and L-C oscillations,transformer questions with solutions

Showing 1–10 of 18 questions

• MCQmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

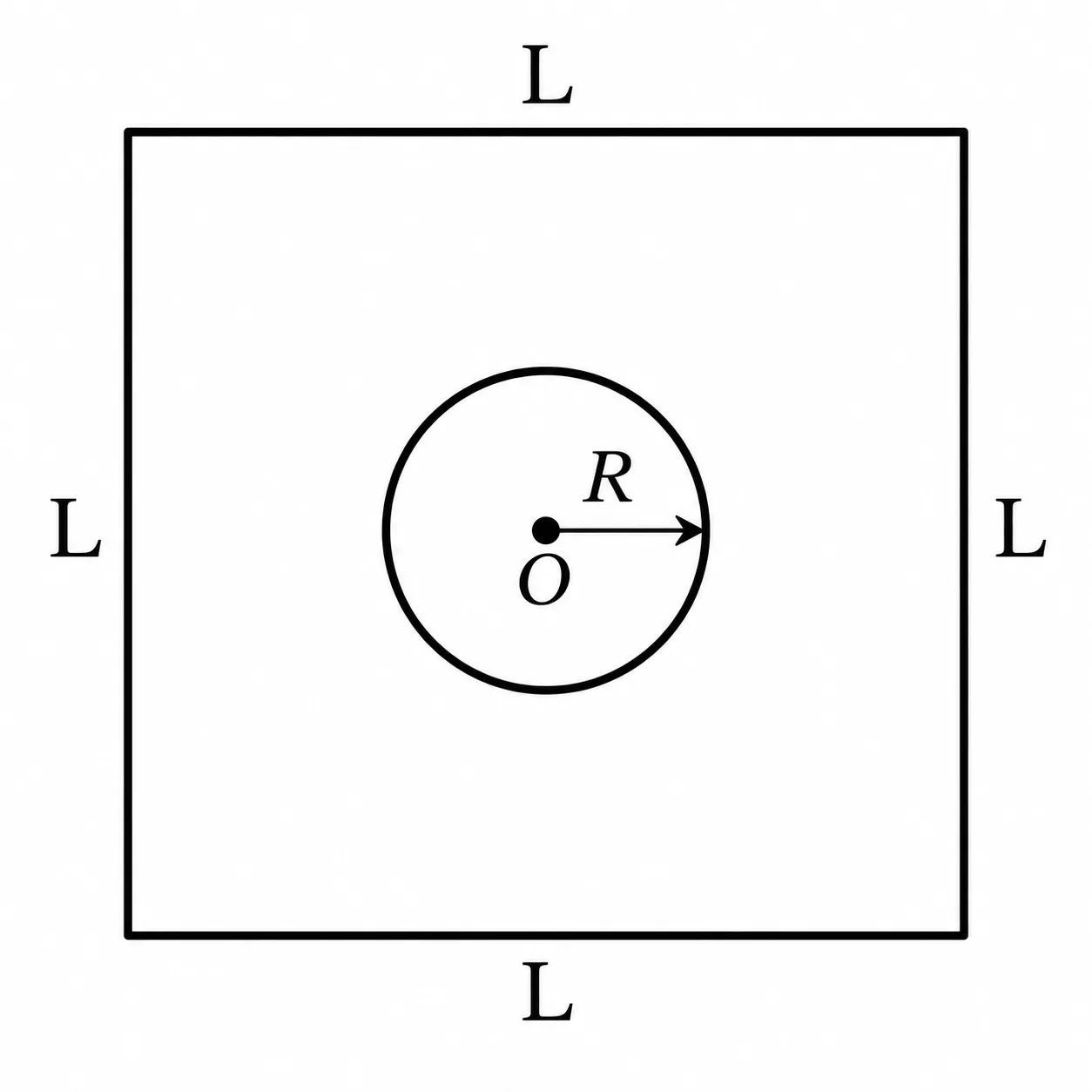

  Find the mutual inductance in the arrangement, when a small circular loop of wire of radius R is placed inside a large square loop of wire of side L (L ≫ R). The loops are coplanar and their centres coincide:



  Options

  • Option A

    2μ₀R²/L

  • Option B

    2√2 μ₀R²/L²

  • Option C

    2√2 μ₀R²/L

  • Option D

    √2 μ₀R²/L²

  Check answerShow answer

  JEE Mains29 January 2023Shift 1Morning Shift

  Open question & full solution →
• MCQeasyElectromagnetic InductionMutual induction and L-C oscillations,transformer

  A transformer has an efficiency of 80% and works at 10 V and 4 kW. If the secondary voltage is 240 V, then the current in the secondary coil is:

  Options

  • Option A

    1.59 A

  • Option B

    13.33 A

  • Option C

    1.33 A

  • Option D

    15.1 A

  Check answerShow answer

  JEE Mains 2024 01 Feb Evening Shift

  Open question & full solution →
• MCQmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

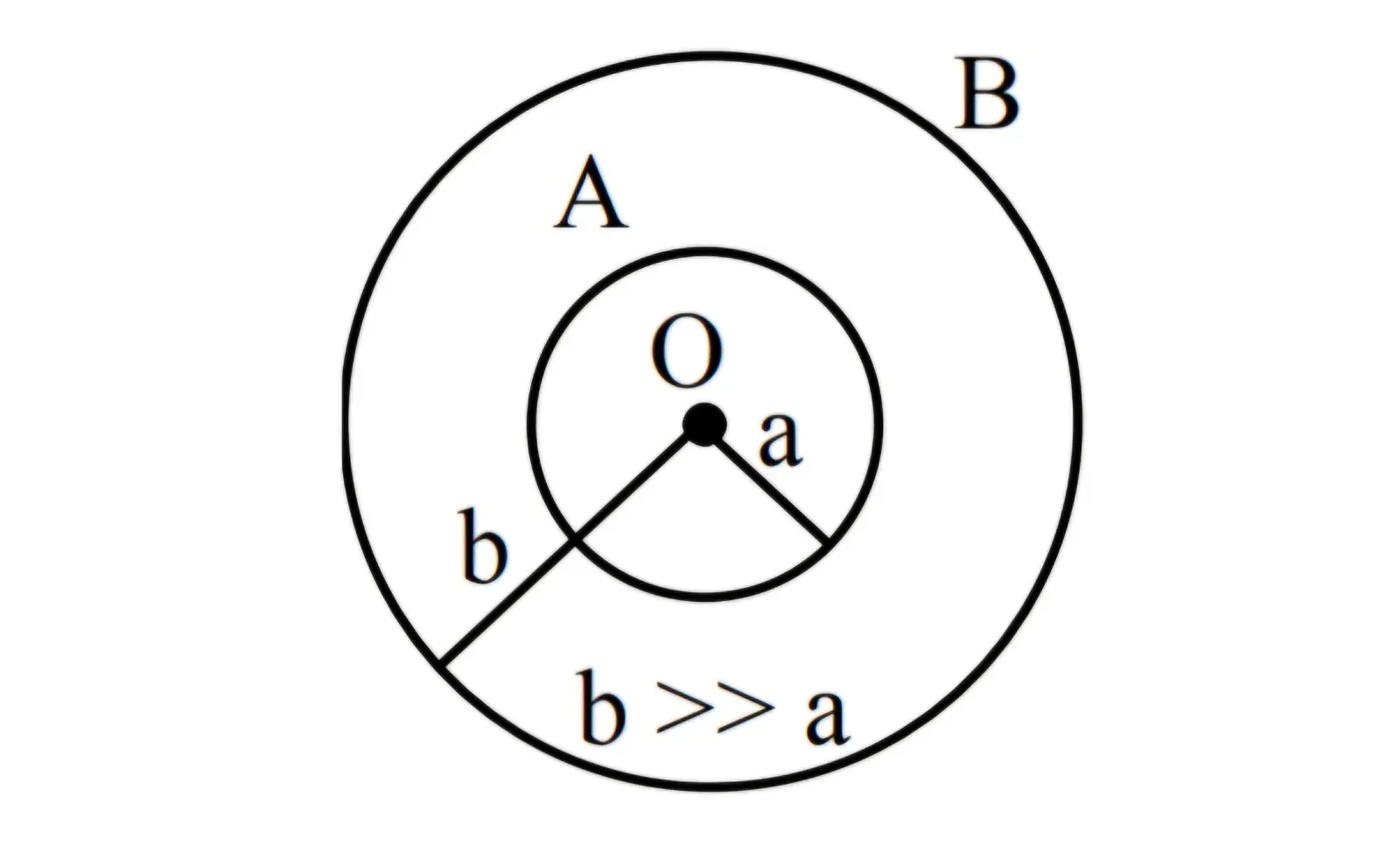

  Two conducting circular loops A and B are placed in the same plane with their centres coinciding as shown in figure. The mutual inductance between them is:



  Options

  • Option A

    μ₀πa²/(2b)

  • Option B

    μ₀b²/(2πa)

  • Option C

    μ₀πb²/(2a)

  • Option D

    μ₀a²/(2πb)

  Check answerShow answer

  JEE Mains 2024 05 Apr Morning Shift

  Open question & full solution →
• NumericmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

  A small square loop of wire of side ℓ is placed inside a large square loop of wire of side L, where L = ℓ². The loops are coplanar and their centers coincide. The value of mutual inductance of the system is √x × 10⁻⁷ H, where x = ____.

  Your answer

  Check answerShow answer

  JEE Mains 2024 31 Jan Morning Shift

  Open question & full solution →
• MCQmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

  A small circular loop of radius R is placed concentrically and coplanarly inside a much larger square loop of side L, where L is much greater than R. What is the mutual inductance between the two loops? Take the permeability of free space as μ₀.

  Options

  • Option A

    2√2 μ₀L² /R

  • Option B

    √2 μ₀L² /R

  • Option C

    2 μ₀R² / L

  • Option D

    2√2 μ₀R² / L

  Check answerShow answer

  JEE Mains 2026 2 April Evening Shift

  Open question & full solution →
• MCQmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

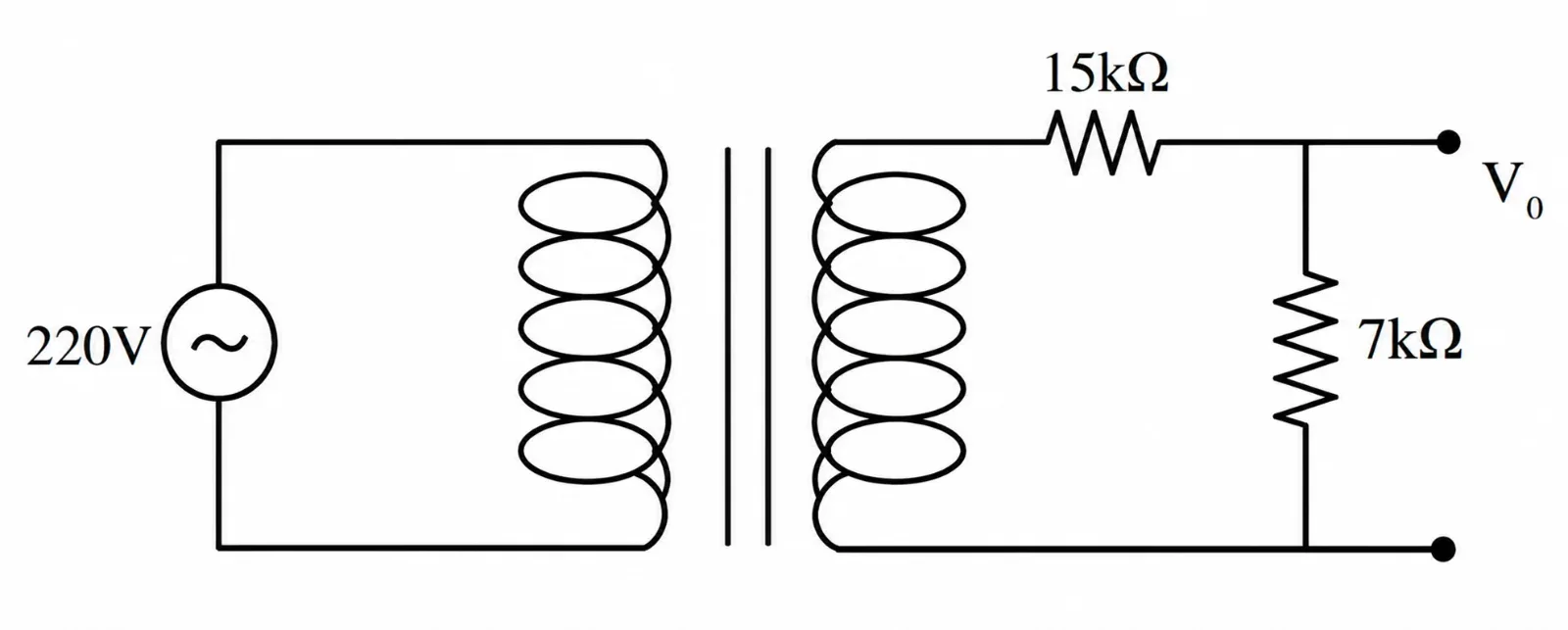

  Primary coil of a transformer is connected to 220 V ac. Primary and secondary turns of the transforms are 100 and 10 respectively. Secondary coil of transformer is connected to two series resistance shown in shown in figure. The output voltage (V₀) is :



  Options

  • Option A

    7 V

  • Option B

    15 V

  • Option C

    44 V

  • Option D

    22 V

  Check answerShow answer

  JEE Mains 2024 30 Jan Morning Shift

  Open question & full solution →
• MCQeasyElectromagnetic InductionMutual induction and L-C oscillations,transformer

  In an LC oscillator, if the values of inductance and capacitance become twice and eight times respectively, then the resonant angular frequency becomes x times its initial resonant angular frequency ω₀. The value of x is:

  Options

  • Option A

    1/4

  • Option B

    16

  • Option C

    1/16

  • Option D

    4

  Check answerShow answer

  JEE Mains25 January 2023Morning Shift

  Open question & full solution →
• NumericmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

  Two concentric circular coils of radii 1 cm and 1000 cm, with 10 and 200 turns respectively, are coaxial with coinciding centres. The mutual inductance is ______ × 10⁻⁸ H. [Take π² = 10]

  Your answer

  Check answerShow answer

  JEE Mains6 April 2023Shift 2Evening Shift

  Open question & full solution →
• MCQmediumElectromagnetic InductionMutual induction and L-C oscillations,transformer

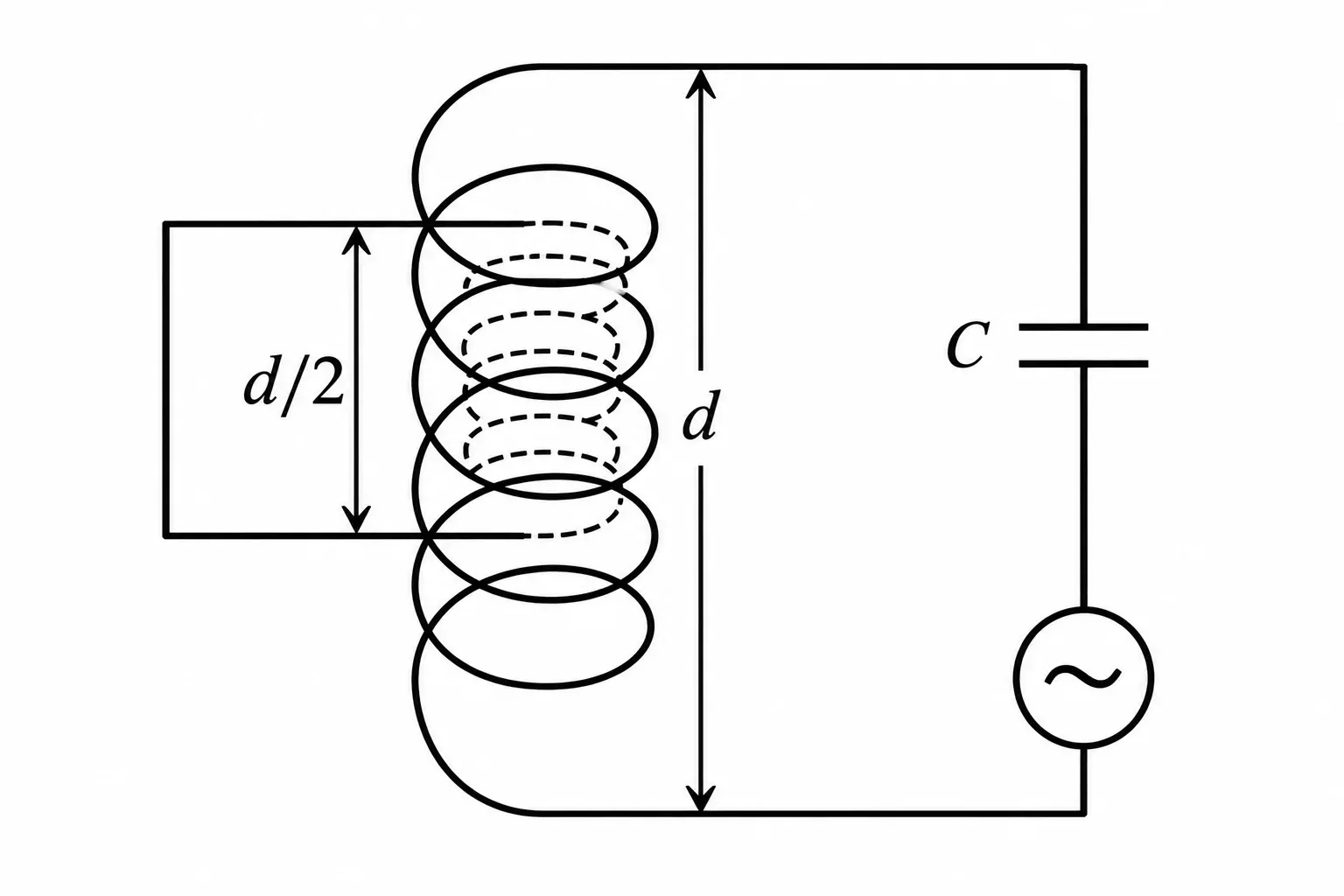

  Consider a circuit consisting of a capacitor of capacitance C and a coil with N turns per unit length, cross sectional area S and length d, where d² ≫ S. There is another coil of length d/2, cross sectional area S/2 and 2N turns per unit length completely inside the larger coil, as shown in the figure. The ends of this smaller coil are connected with each other by an insulated conducting wire. The self-inductance of the larger coil is L. Neglecting edge effects and all the Ohmic resistances, the resonant frequency of the circuit is:



  Options

  • Option A

    4/√(15LC)

  • Option B

    6/√(5LC)

  • Option C

    2/√(3LC)

  • Option D

    √[2/(3LC)]

  Check answerShow answer

  JEE Advanced2026Paper 1

  Open question & full solution →
• MatcheasyElectromagnetic InductionMutual induction and L-C oscillations,transformer

  Match List I with List II.

  List 1

  1. A. AC generator

  2. B. Transformer

  3. C. Resonance phenomenon to occur

  4. D. Sharpness of resonance

  List 2

  1. I. Presence of both L and C

  2. II. Electromagnetic Induction

  3. III. Quality factor

  4. IV. Mutual Inductance

  Options

  • Option A

    A-IV, B-II, C-I, D-III

  • Option B

    A-II, B-I, C-III, D-IV

  • Option C

    A-II, B-IV, C-I, D-III

  • Option D

    A-IV, B-III, C-I, D-II

  Check answerShow answer

  JEE Mains1 February 2023Shift 1Morning Shift

  Open question & full solution →
