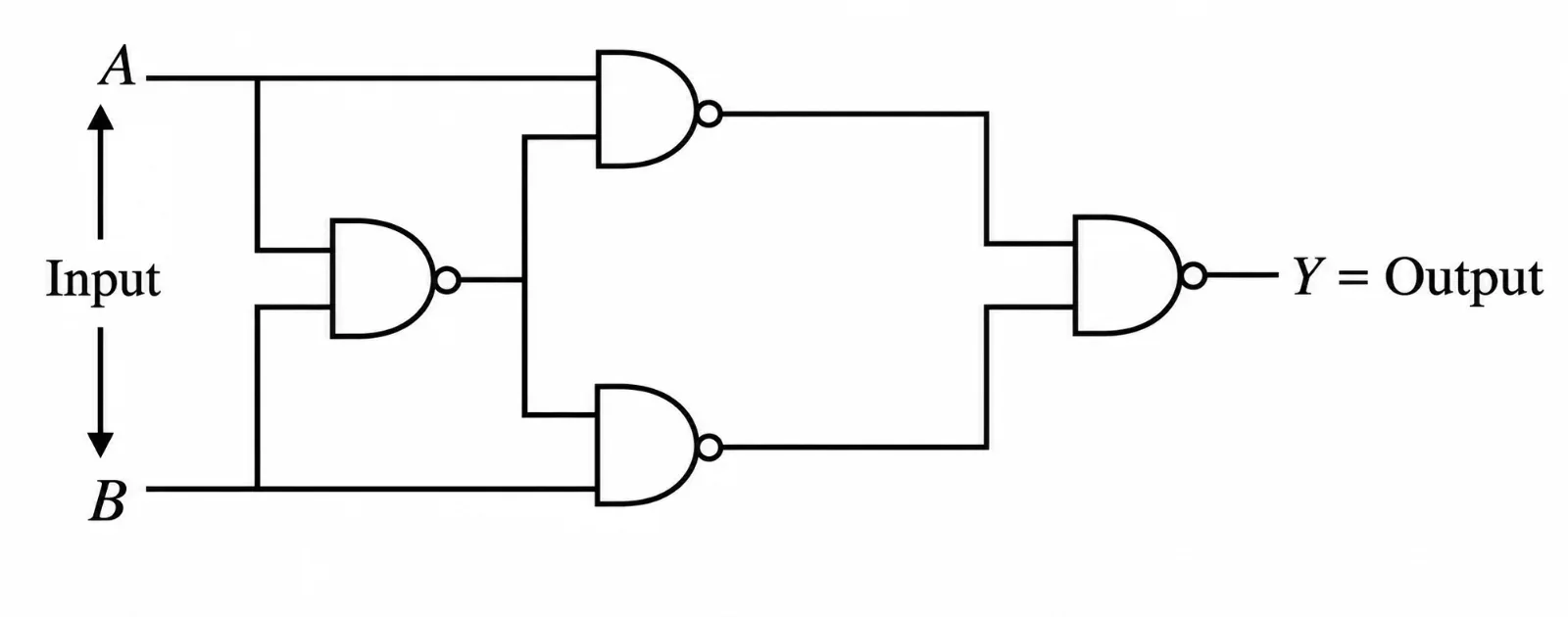

The output Y for the inputs A and B of the circuit is given by. The truth table of the shown circuit is:

Options

• Option A

  A B Y

  0 0 1

  0 1 1

  1 0 1

  1 1 0

• Option B

  A B Y

  0 0 1

  0 1 0

  1 0 0

  1 1 1

• Option C

  A B Y

  0 0 0

  0 1 1

  1 0 1

  1 1 1

• Option D

  A B Y

  0 0 0

  0 1 1

  1 0 1

  1 1 0
