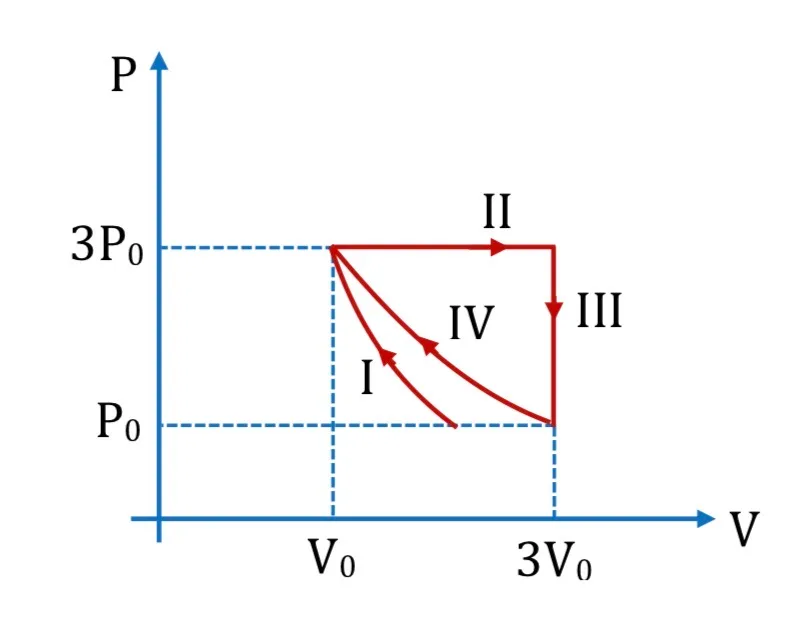

One mole of a monatomic ideal gas undergoes four thermodynamic processes as shown schematically in the PV-diagram below. Among these four processes, one is isobaric, one is isochoric, one is isothermal and one is adiabatic. Match the processes mentioned in List-l with the corresponding statements in List-II.
Physics · Thermodynamics
One mole of a monatomic ideal gas undergoes four thermodynamic processes as shown schematically in the PV-diagram below. Among these four processes, one is isobaric, one is isochoric, one is isothermal and one is adiabatic. Match the processes mentioned in List-l with the corresponding statements in List-II.
List 1
P. Process I
Q. Process II
R. Process III
S. Process IV
List 2
1. Work done by gas is zero
2. Temperature remains unchanged
3. No heat exchanged
4. Work done by gas is 6P₀V₀
Options
