Electrostatic Physics Questions with Solutions

Showing 1–10 of 56 questions

MCQmediumElectrostatic

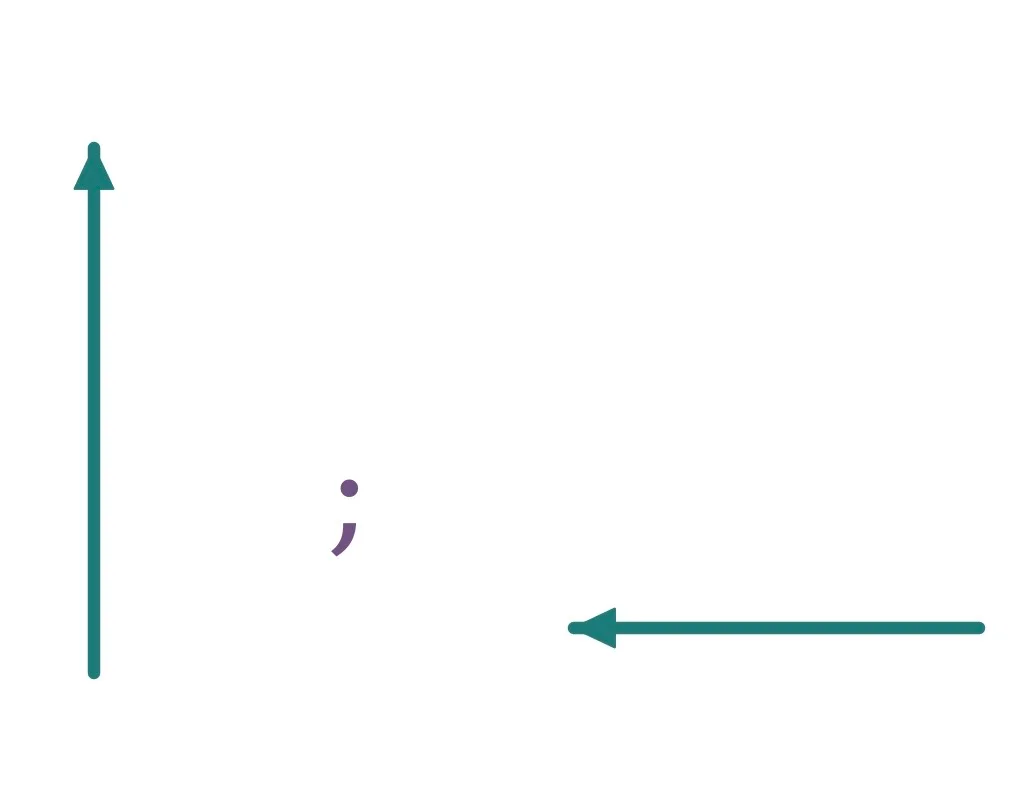

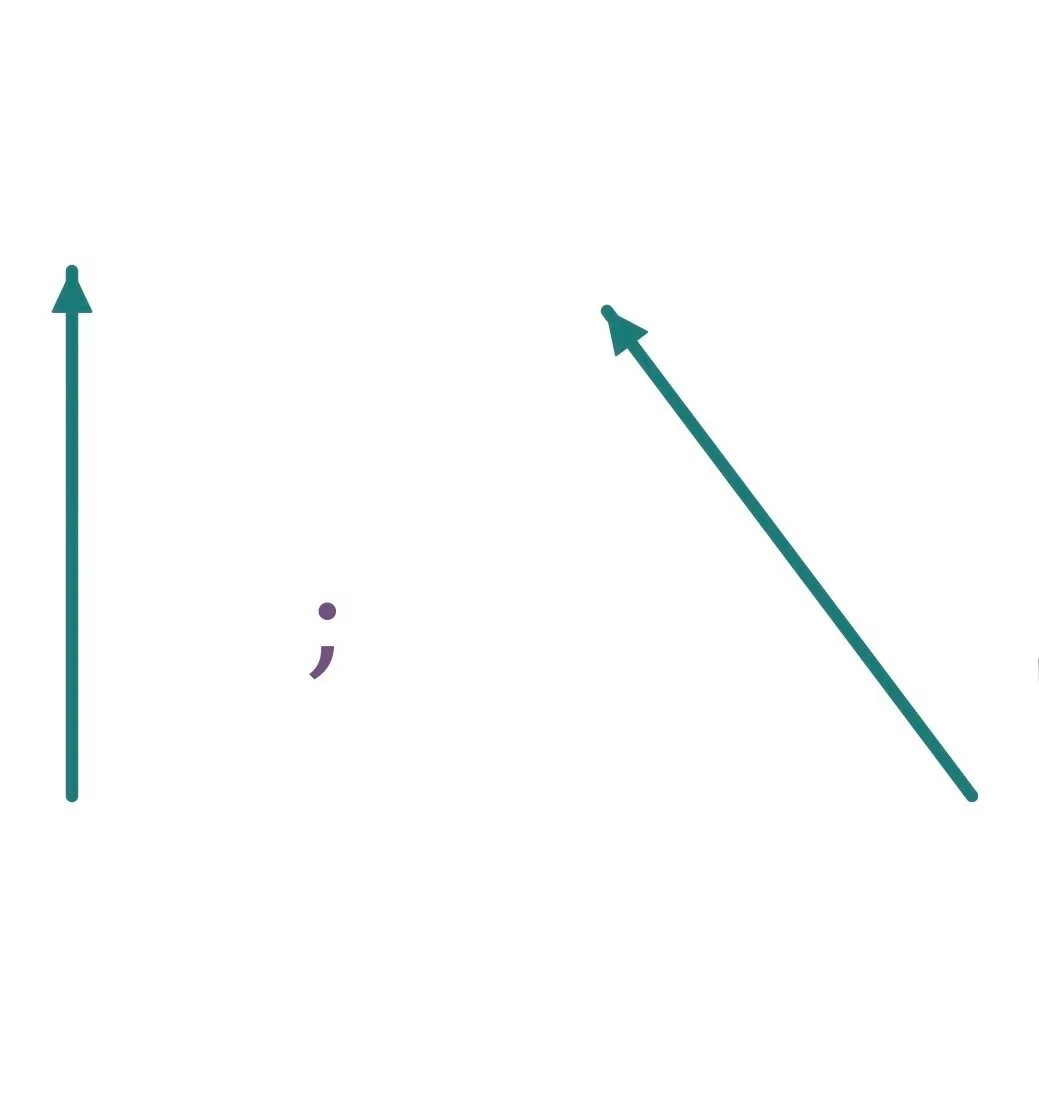

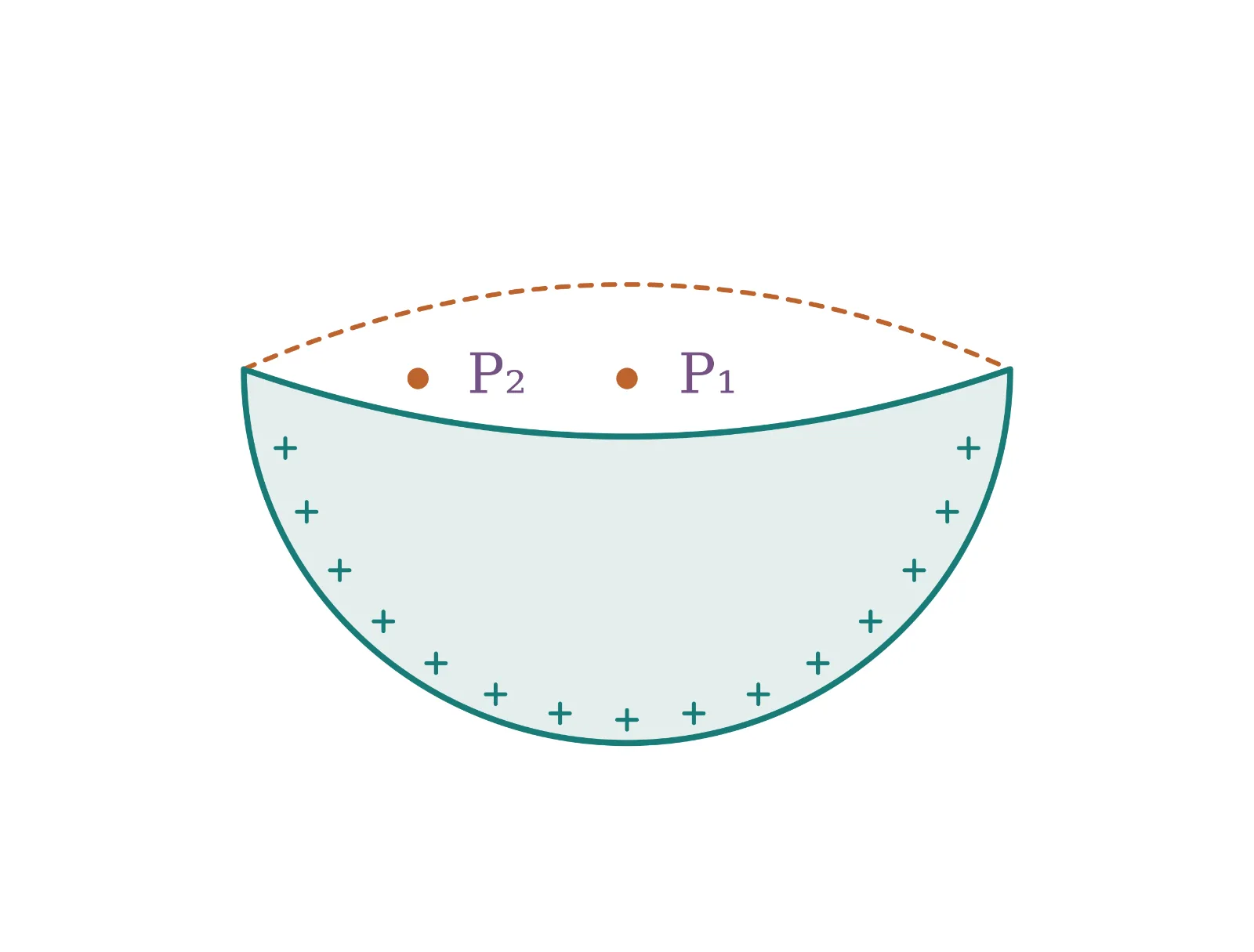

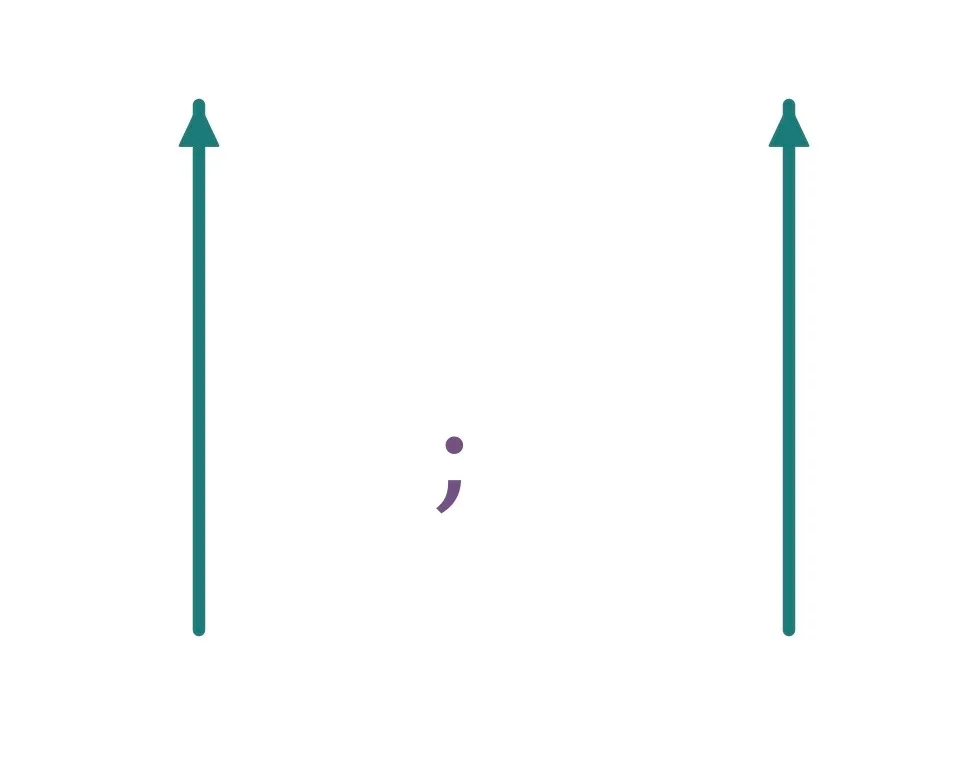

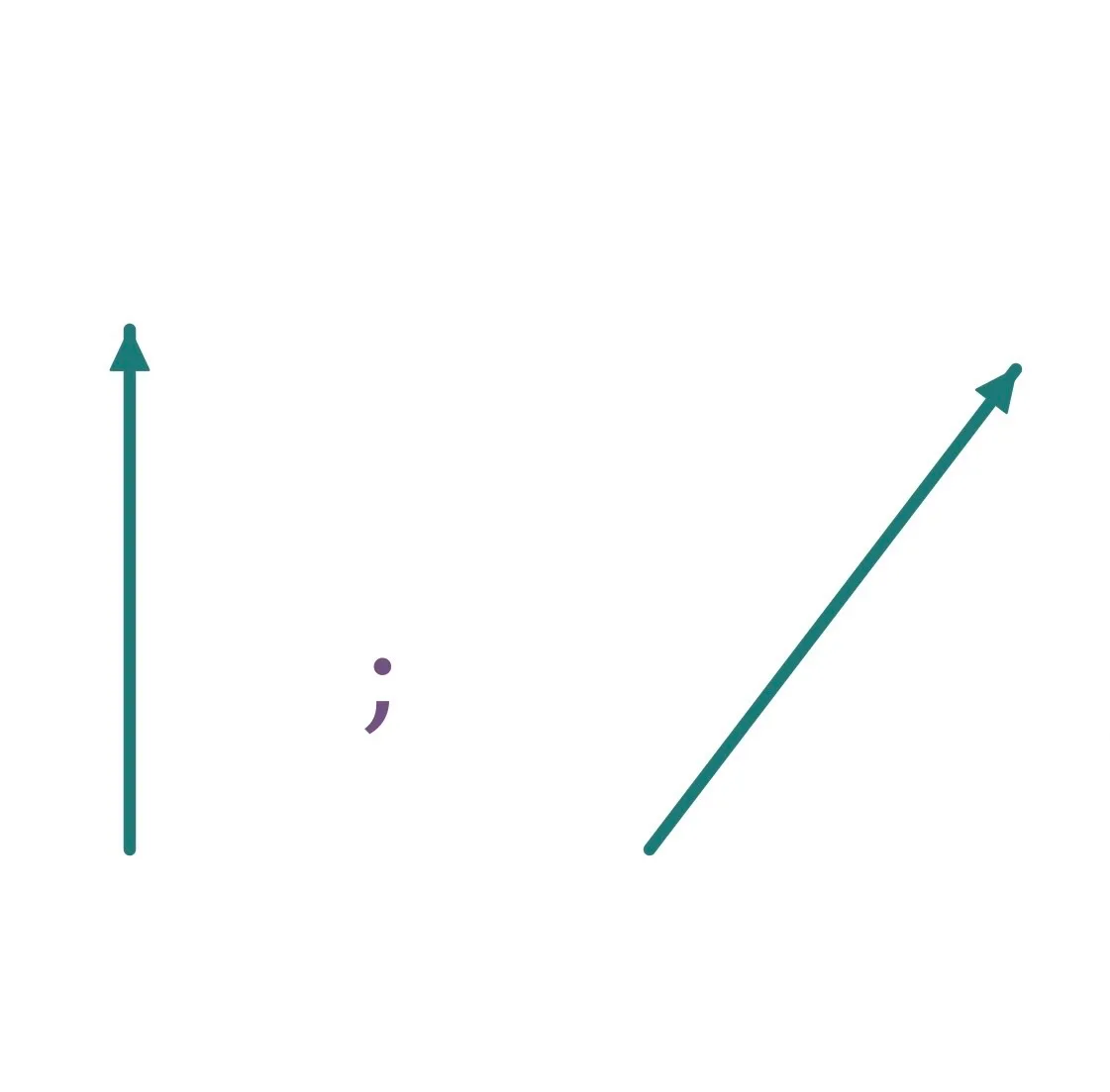

Consider the uniformly charged hemispherical shell shown. Indicate the directions (not magnitudes) of the electric field at the central point P₁ and at the off-centre point P₂ on the circular drumhead of the shell.
Options
JEE Mains
Open question & full solution →
MCQmediumElectrostatic
The radial electric field $\vec{E}=\frac{a}{r^2}e^{-\frac{r}{k}}\hat{r}$ is produced by a point charge q₀=4πε₀a at the origin plus a continuous surrounding charge distribution.The total continuous charge q spread around the origin is:
Options
Open question & full solution →
MCQmediumElectrostatic
An infinitely long wire has uniform linear charge density λ = 2 nC/m. It passes through two maximally separated corners of a Gaussian cube of side √3 cm. Neglect edge effects. If the net electric flux is x N m² C⁻¹ and 1/(4πε₀) = 9×10⁹ SI units, then x is:
Options
JEE Mains 2025 8 April Evening Shift (Shift 2)
Open question & full solution →
MCQmediumElectrostatic
For the charged sphere with ρ(r)=ρ₀(1-r/R), the electric field inside is maximum at r equal to:
Options
Open question & full solution →
MCQmediumElectrostatic

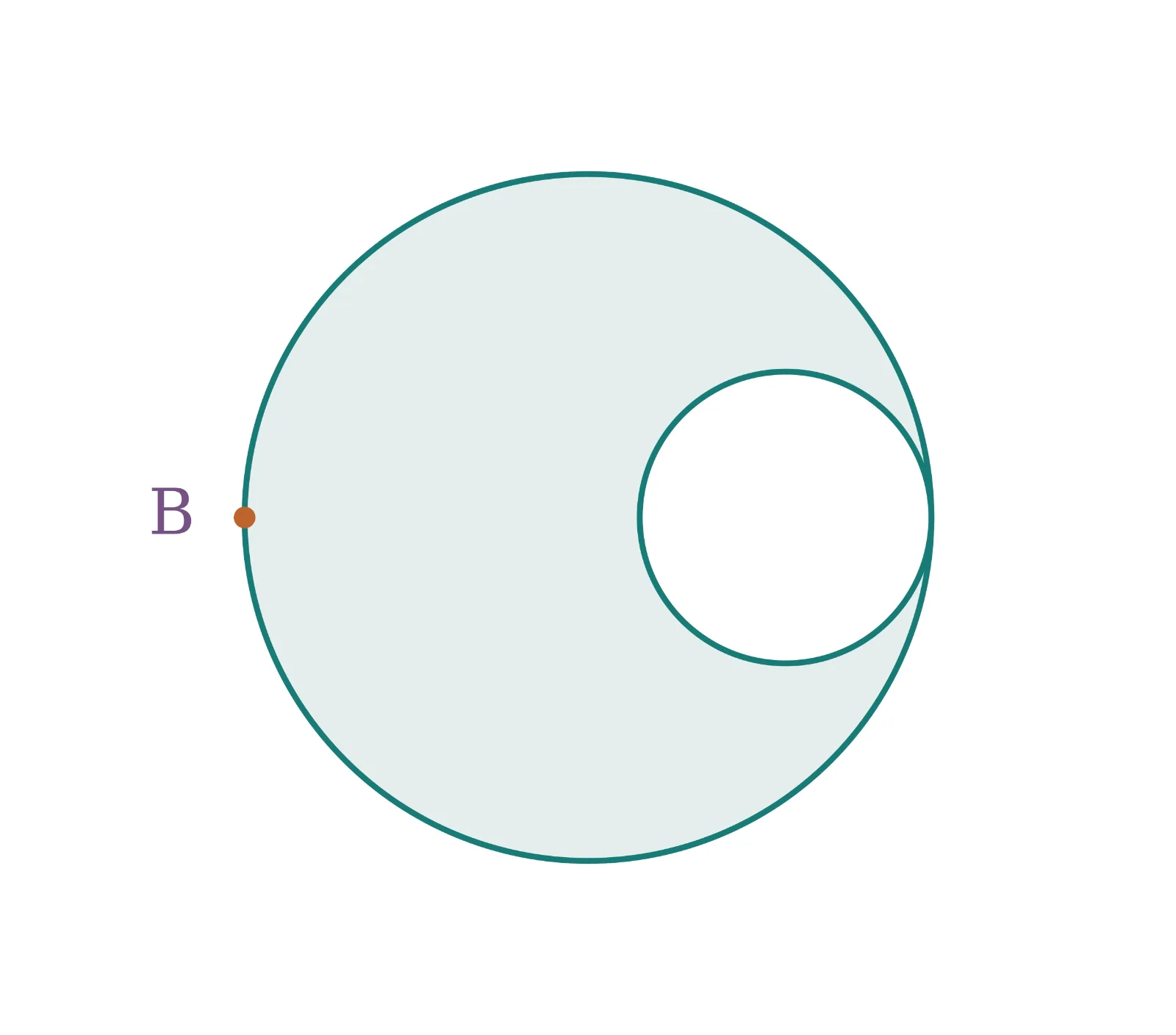

A positively charged sphere of radius r₀ carries a volume charge density ρ (Figure). A spherical cavity of radius r₀/2 is then scooped out and left empty, as shown. What is the direction and magnitude of the electric field at point B ?
Options
JEE Mains
Open question & full solution →
MCQmediumElectrostatic
Identify the correct statements :
A. Electrostatic field lines form closed loops.
B. The electric field lines point radially outward when charge is greater than zero.
C. The Gauss-Law is valid only for inverse-square force.
D. The workdone in moving a charged particle in a static electric field around a closed path is zero.
E. The motion of a particle under Coulomb’s force must take place in a plane.
Choose the correct answer from the options given below :
Options
JEE Mains 202628 January Evening Shift
Open question & full solution →
MCQeasyElectrostatic
An infinitely long non-conducting solid cylinder of radius R has uniform volume charge density ρ.At a point inside the cylinder at distance x<R from its axis, the electric-field magnitude is:
Options
Open question & full solution →
MCQdifficultElectrostatic

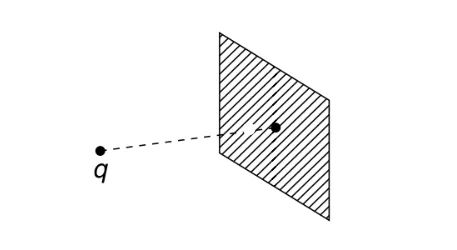

A point charge q lies on the axis of a square non-conducting surface, very close to its centre. The electric flux through the square due to q is Φ.The square is then given uniform surface charge density σ. The magnitude of force on q due to the charged square is:
Options
Open question & full solution →
MCQmediumElectrostatic
σ is the uniform surface charge density of a thin spherical shell of radius R. The electric field at any point on the surface of the spherical shell is :
Options
JEE Mains 2024 06 Apr Morning Shift
Open question & full solution →
MCQmediumElectrostatic

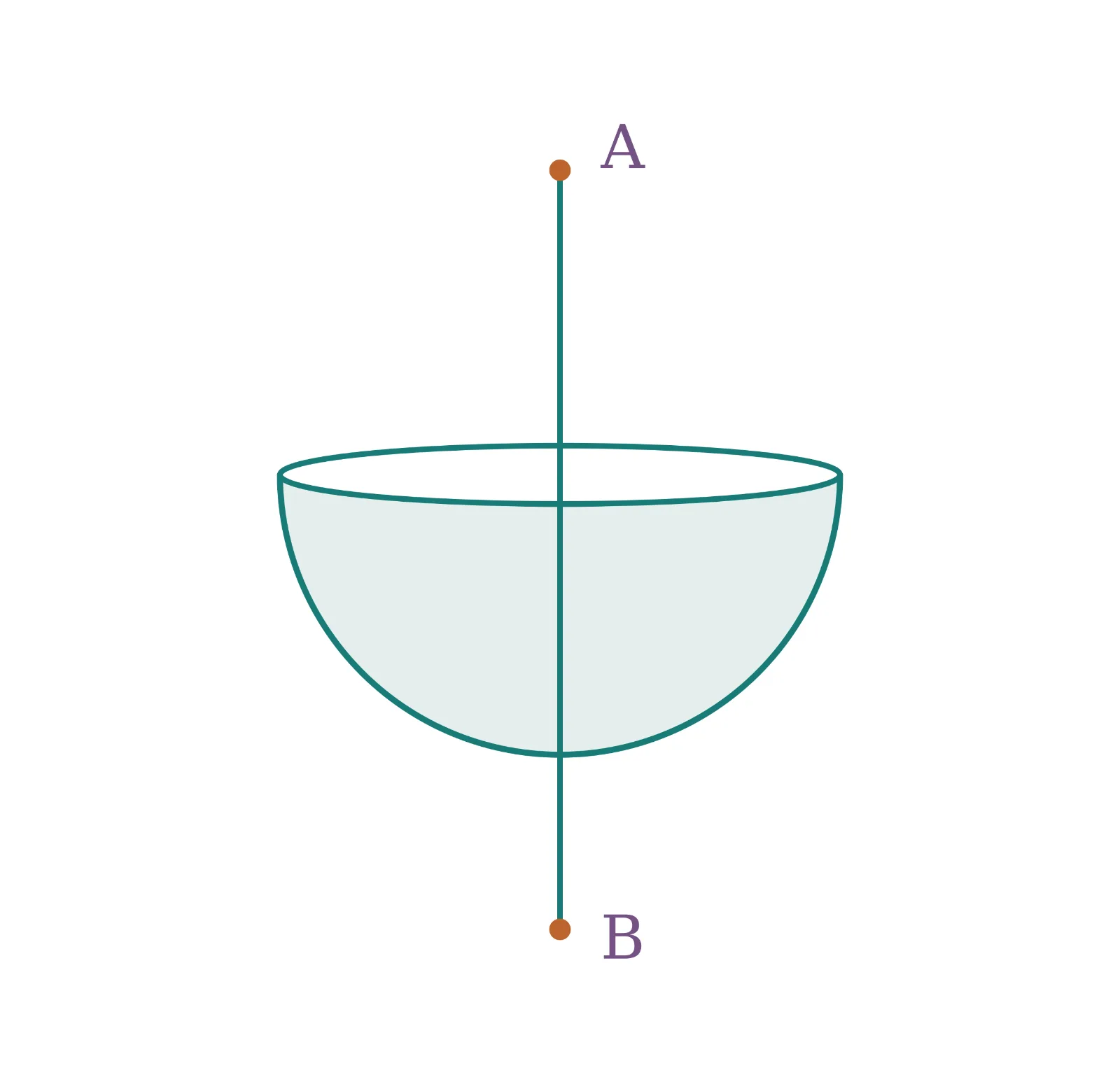

The diagram shows a uniformly charged hemisphere of radius R. It has volume charge density $\rho$ . If the electric field at a point 2R distance above its center is E then what is the electric field at the point which is 2R below its center?
Options
JEE Mains
Open question & full solution →
