Free physics question bank
law of reflection and plane mirror questions with solutions
Practice Geometrical optics for JEE Main, JEE Advanced, NEET, and Classes 11–12. Attempt each question, then open it for the full solution.
Showing 1–10 of 94 questions
- MCQmediumGeometrical optics
A plane mirror is vertical and moves normally to the right with velocity î m/s. At an instant it coincides with the y-axis. An object in front of it has velocity 2î+3ĵ m/s. What is the image velocity?
Options
JEE MainsNEET
Open question & full solution → - NumericmediumGeometrical optics
The incident-ray direction rotates anticlockwise at 3 rad/s while the mirror normal rotates anticlockwise at 5 rad/s. Taking anticlockwise as positive, find the angular velocity of the reflected ray in rad/s.
JEE MainsNEET
Open question & full solution → - Multi-correctmediumGeometrical optics

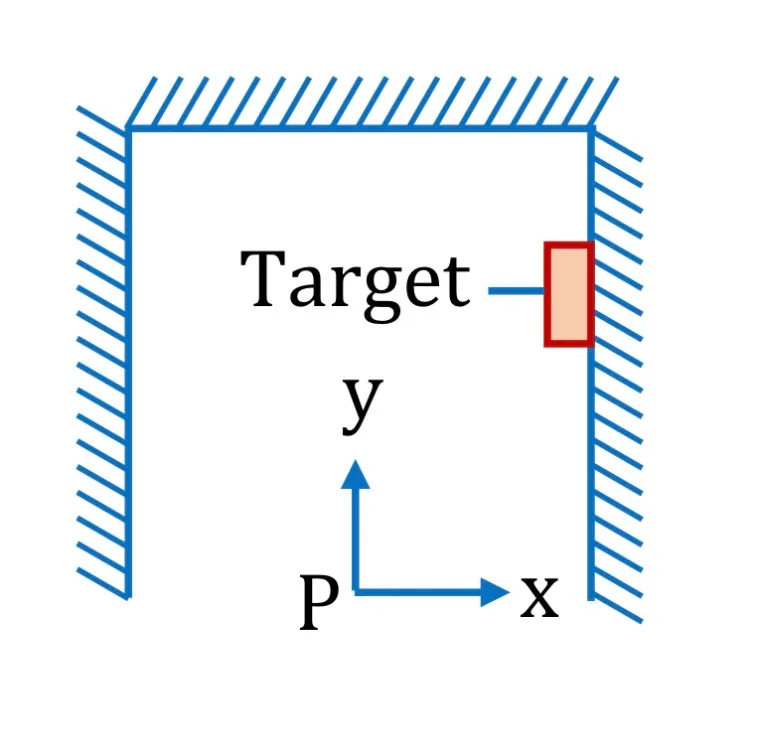

The drawing shows a top view of a square room. One wall is missing and the other three are each mirrors. From point P in the center of the open side, a laser is fired, with the intent of hitting a small target located at the center of one wall. Identify vector in whose direction the laser can be fired and score a hit, assuming that the light does not strike any mirror more than one.
Select all that apply
JEE MainsJEE Advanced
Open question & full solution → - MCQmediumGeometrical optics
A man, whose height is 1.75 m is standing at a distance 6 m from a vertical pillar of height h = 7 m. At what distance from the man should we put a small flat mirror on the ground horizontally to see in it the image of the top of the pillar ?
Options
JEE MainsJEE Advanced
Open question & full solution → - MCQmediumGeometrical optics
An object is moving with velocity 2î + 3ĵ + 6k̂ m s⁻¹. A plane mirror whose reflecting surface is parallel to the y-z plane is moving with velocity î + ĵ + k̂ m s⁻¹. What is the velocity of the image as seen by a stationary observer?
Options
JEE MainsJEE Advanced
Open question & full solution → - Multi-correctmediumGeometrical optics
A ray undergoes successive reflections from two plane mirrors that are perpendicular to each other. The ray lies in the plane perpendicular to the mirrors' line of intersection. Which statements are correct?
Select all that apply
JEE MainsNEET
Open question & full solution → - NumericmediumGeometrical optics
Two plane mirrors form 11 distinct images of an object in the standard even-integer case. Find the angle between the mirrors in degrees.
JEE MainsNEET
Open question & full solution → - MCQmediumGeometrical optics

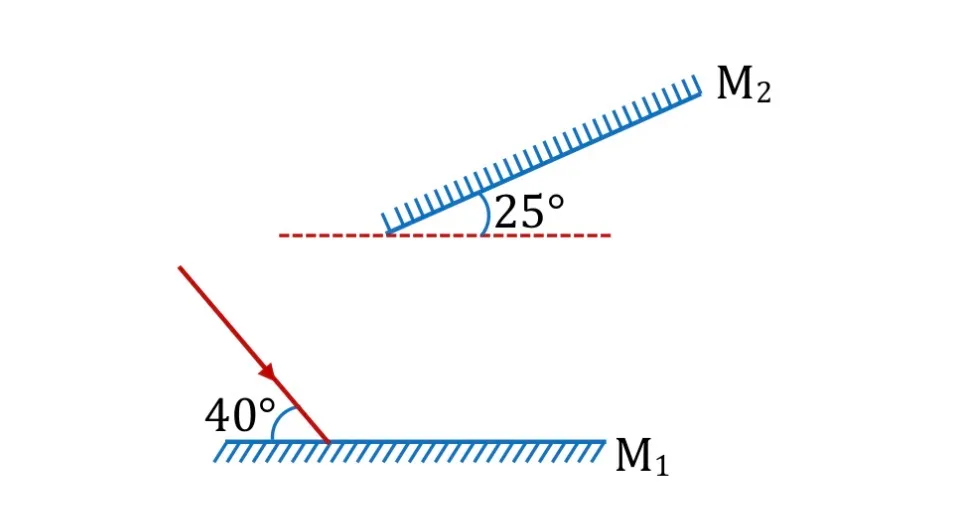

By what angle should M₂ be rotated, so that the light ray after reflection from both mirrors become horizontal?
Options
JEE MainsJEE Advanced
Open question & full solution → - MCQmediumGeometrical optics
A ray travels in the direction 3î - 4ĵ and strikes a plane mirror whose surface is parallel to the x-axis. Which vector is parallel to the reflected ray?
Options
JEE MainsNEET
Open question & full solution → - MCQmediumGeometrical optics

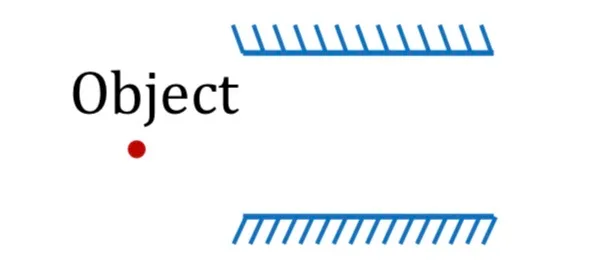

Consider two very small plane mirrors. If the object is at a large distance from mirrors then number of images formed by the mirror system will be
Options
JEE MainsJEE Advanced
Open question & full solution →
