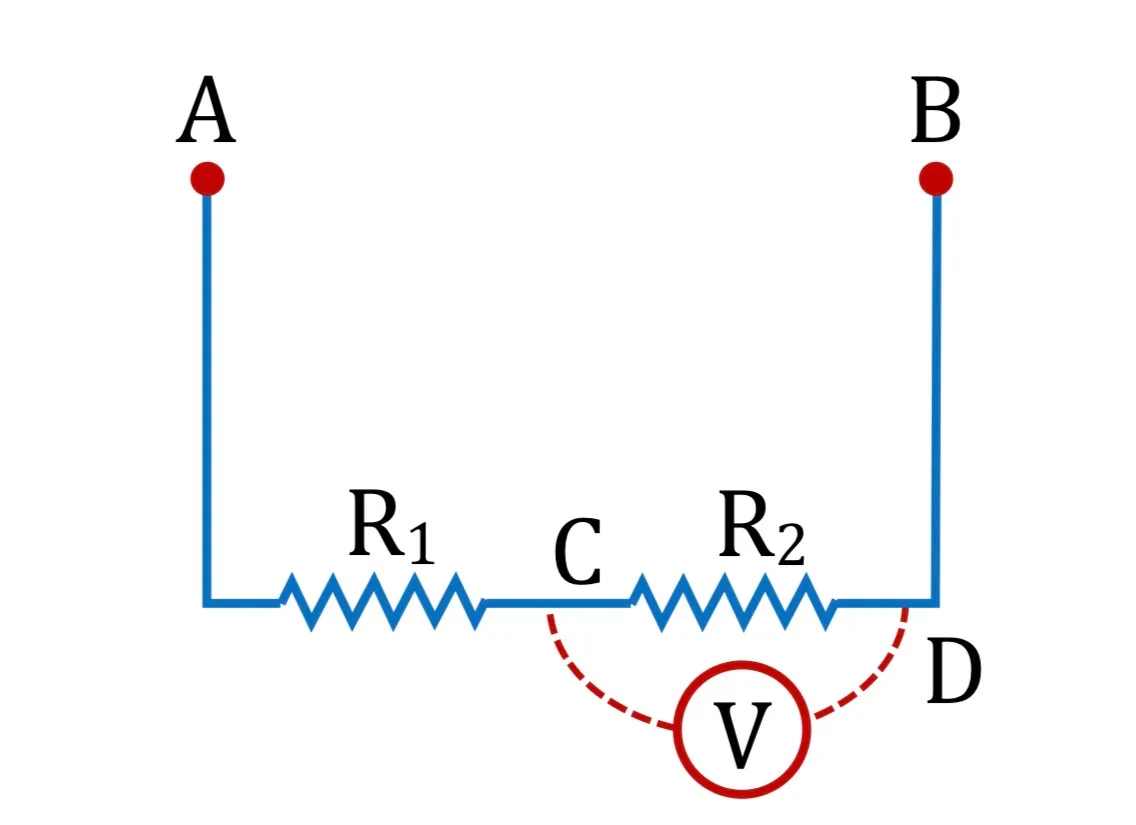

Resistances R₁ and R₂ each 60Ω are connected in series as shown in figure. The Potential difference between A and B is kept 120 volt. Then what will be the reading of voltmeter connected between the point C and D if resistance of voltmeter is 120Ω.

Question

G1 Physics · Accepted Answer

Treat an ideal voltmeter as open circuit and an ideal ammeter as zero resistance; for galvanometer conversion use the standard series/shunt resistance relations. The result matches A (48 V).
